| Brand Name : | KWAYT |
| Model Number : | 50MM,60MM |
| Certification : | SGS |
| Supply Ability : | 10000PCS |
| Commodity | sonic tubes for concrete |
| OD | 38mm,50mm,53mm,57mm,100mm,112mm,163mm |
| Thickness | 1-2mm |
| Material | Q195 etc. |
| Length | 5.8m |
| Certification | TUV,ISO |
| type | press-clamp type, push-fit type,threaded type,flanged type |
| standard | ASTM/BS/GB etc |
| Material | Q195 etc |
| Color | black |
| End finish | plain |
| Surface treatment | PE or oiled or mill varnish |
Position splice
• No wastage – standard lengths
• No Electricity/Welding/Threading
• Push-fit assembly
• Fast & Light handling by workers
• Easy fixing to rebar cage
• No weather limitations
• Patented & designed for sonic testing
• 100% tested in factory
• Easy visual inspection on site
• Optional mechanical crimping
| Size/OD(mm | WT(mm) | Tensile strength(Mpa) | Elongation | Internal pressure(Mpa) | External ressure(Mpa) |
| 50 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 54 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 57 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |

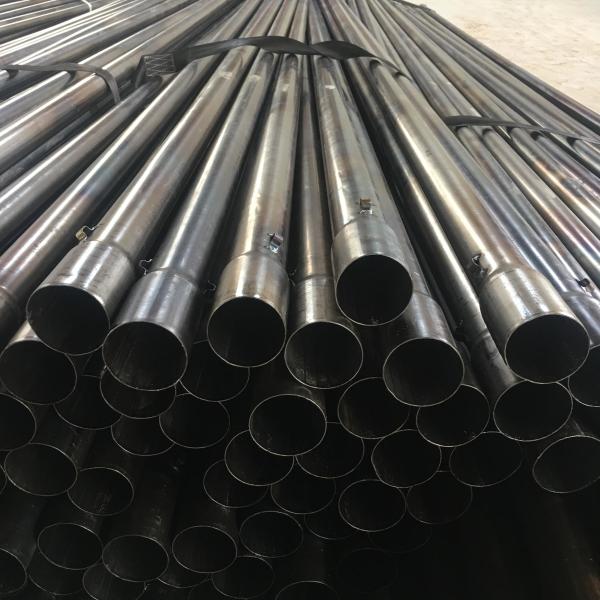

sonic tubes for concrete, is dedicated for sonic test applications. They are specially designed to be encased in foundations such as bored piles, diaphragm walls and barrettes to allow for future testing of the concrete integrity by ultrasonic waves.
sonic tube is the Push-Fit SYSTEM available on the market dedicated for sonic test applications. The concept is to form a bell mouth by enlarging the end of the tube to allow a CONCRETE PROOF JOINT.
|
|
