| Brand Name : | KWAYT |
| Price : | 0.2-1.5USD FOB Price |
| Delivery Time : | 15-20 days |
| Payment Terms : | T/T,L/C |
Commodity | sonic tube |
| OD | 50mm,53mm,57mm,112mm,163mm |
| Thickness | 1-2mm |
| Material | Q195 etc. |
| Length | 5.8m |
| Certification | TUV,ISO |
| type | press-clamp type, push-fit type,threaded type,flanged type |
| standard | ASTM/BS/GB etc |
| Material | Q195 etc |
| Color | black |
| End finish | plain |
| Surface treatment | PE or oiled or mill varnish |
Position splice
• No wastage – standard lengths
• No Electricity/Welding/Threading

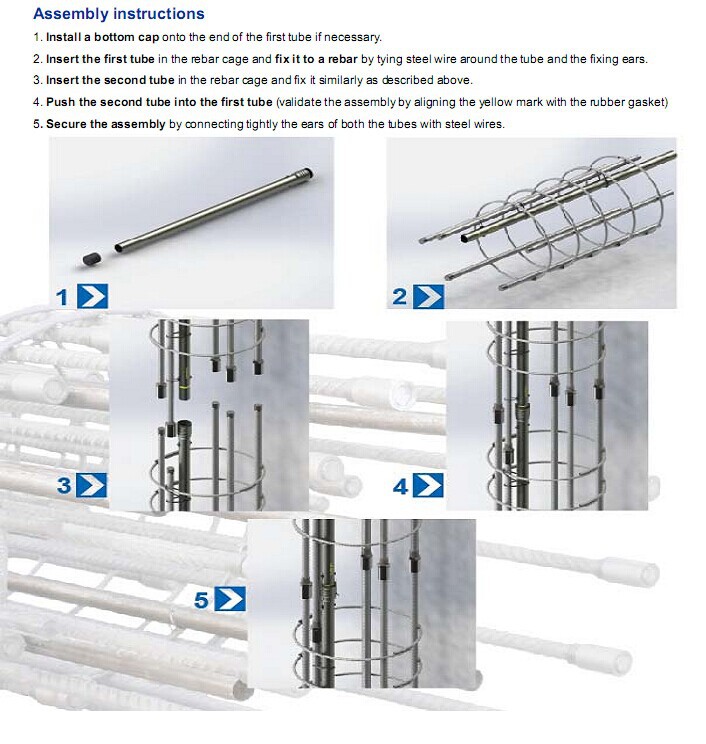

• Push-fit assembly
• Fast & Light handling by workers
• Easy fixing to rebar cage
• No weather limitations
• Patented & designed for sonic testing
• 100% tested in factory
• Easy visual inspection on site
• Optional mechanical crimping
| Size/OD(mm | WT(mm) | Tensile strength(Mpa) | Elongation | Internal pressure(Mpa) | External ressure(Mpa) |
| 50 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 54 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 57 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
sonic pipe , is dedicated for sonic test applications. They are specially designed to be encased in foundations such as bored piles, diaphragm walls and barrettes to allow for future testing of the concrete integrity by ultrasonic waves.
sonic tube is the Push-Fit SYSTEM available on the market dedicated for sonic test applications. The concept is to form a bell mouth by enlarging the end of the tube to allow a CONCRETE PROOF JOINT.
Application of sonic tube:
Qingdao Kwayt Co.,Ltd is the subsidiary company of Shandong Hongsheng Steel Pipe Co., Ltd.which is engaged in exportation of steel pipes and fittings. Shandong Hongsheng Steel Pipe Co., Ltd. is the largest manufacturing and sales enterprise for galvanized steel pipe ,seamless steel pipe and fittings in the north of Shandong Province.Our factory supply galvanized steel pipe,stainless steel pipe,carbon steel pipe, alloy steel pipe, ERW
/SSAW/ LSAW PIPE, API pipe,pipe fitting.
Our products are widely used in petroleum, chemical, power and gas, oil and gas well field casing and tubing, high pressure boiler tube, drinking water, fire, high-speed fence construction, steel tube, etc.
Welcome to visit our factory !!
Any question or you are interested in sonic pipe ,pls feel free to contact me !!!
